Heart Sure Pulse Oximeter

Directions / How to Use

Please see instruction manual for detailed instructions.
Press the power button for 2 seconds to turn the Pulse Oximeter on

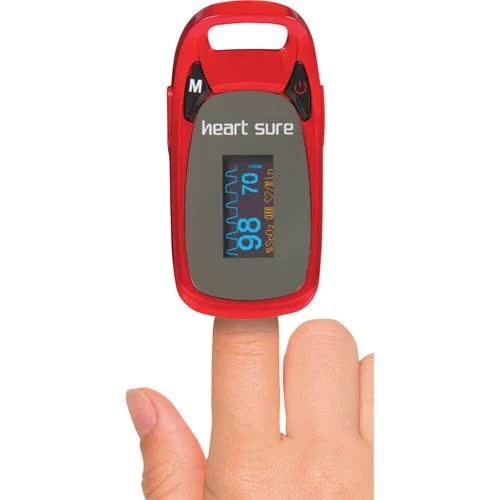

Open the clamp, then place one finger into rubber hole of the Pulse Oximeter (it is best to put the finger as far in as possible) with nail surface upward, then release the clamp to shut
The data may take a few seconds to appear while a reading is obtained.
Heart Sure Pulse Oximeter is useful for measuring the oxygen saturation level in your blood and also your pulse rate:
Pre or Post-exercise
Pre or Post-operative conditions
Monitor respiratory conditions
Cautions:
Always read & follow the instructions for use & health warnings. Consult your health professional to evaluate the readings
Please see instruction manual for full list of warnings.
Prolonged use or depending on the patient's condition may require changing the sensor site periodically. Change sensor site and check skin integrity, circulatory status and correct alignment at least every 2 hours
SpO2 measurements may be adversely affected in the presence of high ambient light. Shield the sensor area if necessary
The following will cause interference to the testing accuracy of the Pulse Oximeter:
High-frequency electrosurgical equipment
Placement of the sensor on an extremity with a blood pressure cuff, arterial catheter, or intravascular line
Patients with hypotension, severe vasoconstriction, severe anaemia or hypothermia
The patient is in cardiac arrest or is in shock
Fingernail polish or false fingernails may cause inaccurate SpO2 readings
Warnings:
Keep out of reach of children. Contains small parts that may cause a choking hazard if swallowed
The device cannot be used in children less than 1 year old as the result may not be accurate
Do not use a mobile phone or other devices that emit electromagnetic fields, near the unit. This may result in incorrect operation of the unit
Do not use this monitor in areas containing high frequency (HF) surgical equipment, magnetic resonance imaging (MRI) equipment, computerized tomography (CT) scanners or in a flammable atmosphere
Follow the battery instructions carefully
Storage:
-10°C to +50°C / 10 to 80% RH (non-condensing) / 60 to 106 kPa
